Dipperfox Stump Crusher

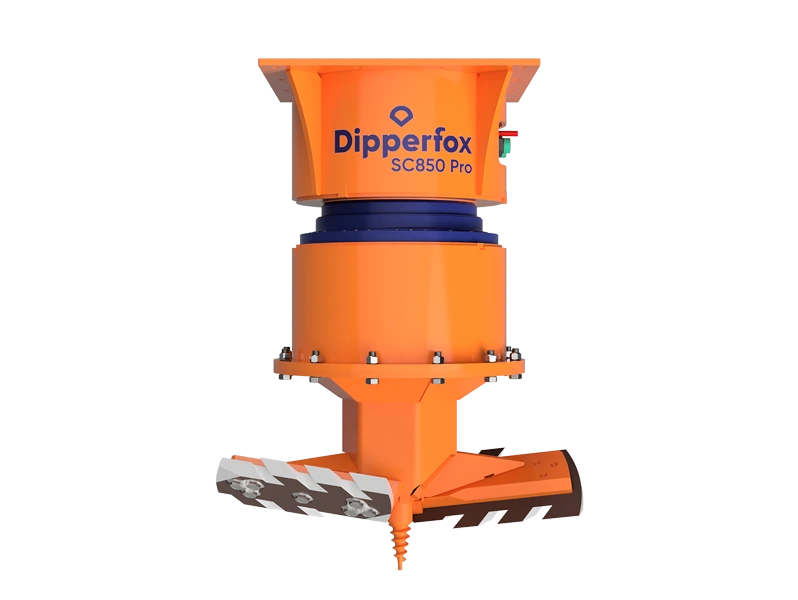

Stump Crusher 850 Pro
Dipperfox Stump Crusher is a professional tool for excavators. Attached to a dipper arm, this beauty will make any heavy equipment user happy. Its award-winning design makes work more efficient and a lot faster. Thus saving you time and money.
The Stump Crusher drills through the stumps and their roots, pushing all the remains deep into the ground. Therefore there is no need for additional clean-up of the logging sites – once the work is finished, the sites are fully accessible for maintenance vehicles and provide good conditions for newly planted trees. No need to collect, transport, and utilize the remains – saving you, even more, time and resources.
This foxy stump crusher works so fast it will make your head spin.
- 2-3 stumps removed in one minute.
- Customizable to fit all excavators.
- Suitable for forest and urban challenges.
- Patented one of a kind design solution.
Friend of the forest
Our Stump Crusher is easy on the soil. Its rotating blades crush and push all the wood residue into the ground and don’t leave any craters or voids behind. The site needs no additional equipment for cleanup and is ready for planting new trees.
Endurance is speed
Using fewer moving parts increases the crusher’s durability and the adjustable transmission allows to put out maximum power at really slow rotation speeds. This creates less wear and tear to the blades, which means more uninterrupted work.
Smart about work
Dipperfox does the same amount of work 5-10 times faster than most competitors, crushing a stump in just 20-30 seconds. If it’s just one stump, then why bother counting the time. But if you need to remove 100 or 1000 stumps, it makes all the difference.

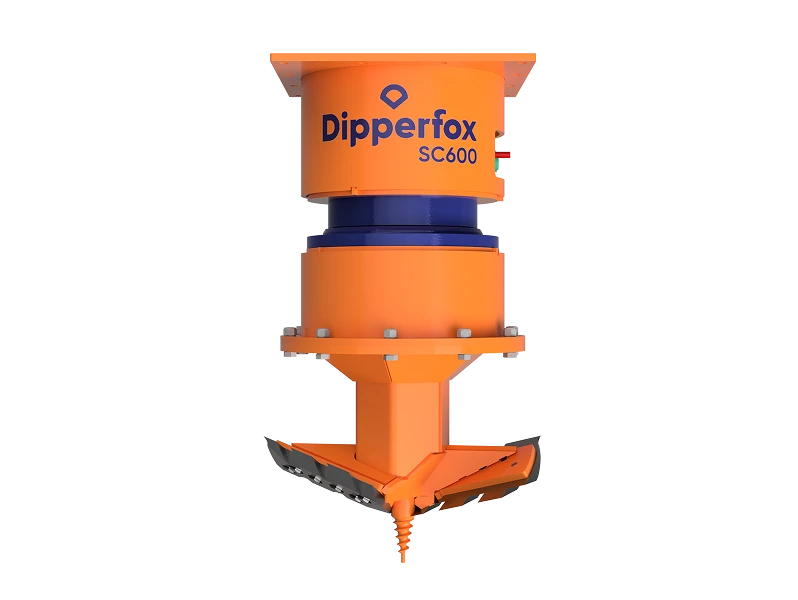

Stump Crusher 600
For Skid-steers and Excavators from 6t - 14t
New for this year, Dipperfox introduced the Dipperfox 600 Stump-Crusher for loaders with a working pressure of over 200bar, opening the attachment to be used on Skid-Steers, excavators (6 – 14t) and backhoe excavators(~10t), this is the perfect tool for maintenance and landscape crews of cities, municipalities arborists and gardeners. thmain advantage Dipperfox [provides over other tree-stump removal techniques and attachments is that the rotating mechanism, drastically reduces noise, increases safety from flying debris and the overall efficiency on which it operates. After all, the Dipperfox is the fastest way to grind down any tree stump standing in your way.

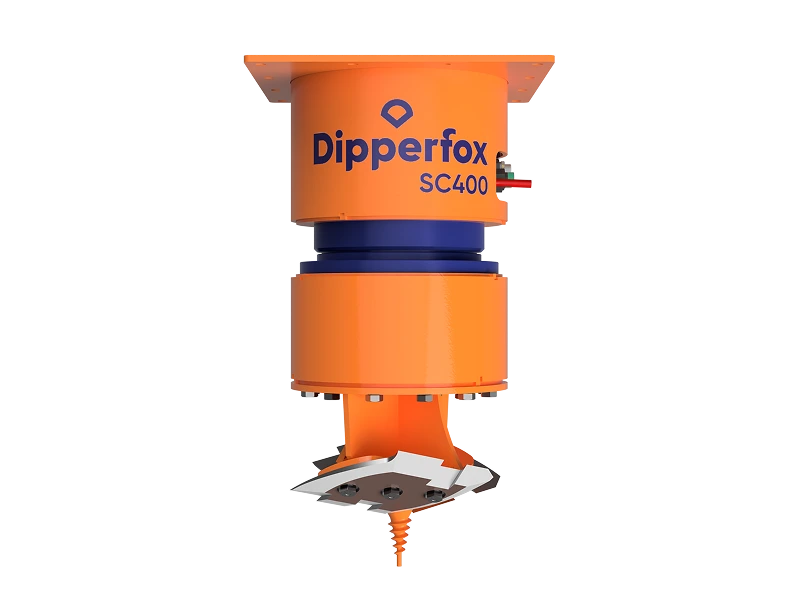

Stump Crusher 400
| Dimension | metric | imperial |
|---|---|---|
| Cutting diameter | 400 mm | 15,75 in |
| Drilling depth (from the ground) | 590 mm | 23,23 in |
| Working pressure | 110-250 bar | 1595-3629 PSI |
| Hydraulic flow min-max | 30-130 l/min | 8-34 gpm |
| Weight | 195 kg | 430 LB |
| Requirements for carrier | ||
| Excavator (EXC) | ||
| Excavator size | 1,5-5 tons | 1,5-5 tons |
| Excavator engine power | 12-35 kW | 16-47 hp |
| Backhoe Loader (BHL) | ||
| BHL size | 3-6 tons | 3-6 tons |
| BHL engine power | 35-60 kW | 47-81hp |
| Compact Loader (CTL) | ||
| CTL size | 1-2,5 tons | 1-2,5 tons |
| CTL engine power | 14-45 kW | 19-61hp |
| Skid Steer Loader (SSL) | ||
| SSL size | 1-2,5 tons | 1-2,5 tons |
| SSL engine power | 15-55 kW | 20-75 hp |
