Wheel Saws-T

Simex is a world leader in the production of earth-moving attachments used to perform compaction, crushing, milling and a whole lot more. They hold several patents on our product technology. To design and produce innovative attachments for the earth-moving industry and find solutions to the most challenging applications.

WHEEL SAWS - T

For Fixed-Section Trenching

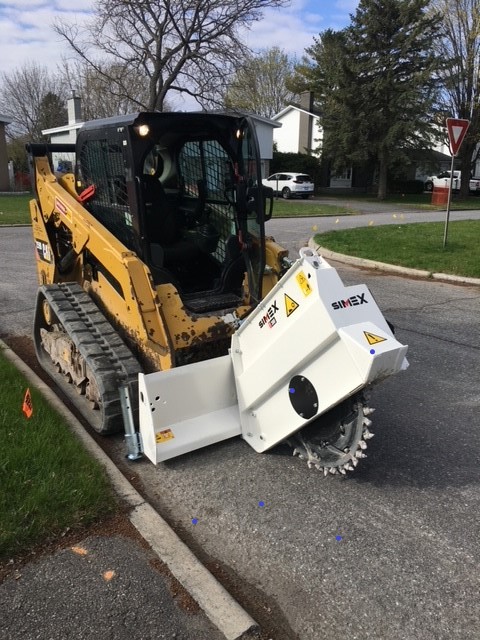

a simex wheel saw on a road
FOR CUTTING AND NARROW TRENCHING.

Designed for fixed-section trenching on hard and compact surfaces. Such as asphalt, cement and rock. Full wheel protection at any working depth ensures maximum safety of persons and property.
Hydraulic piston motors in direct drive with milling disk allow maximum hydraulic efficiency and a high cutting force.

TECHNICAL FOCUS: TRENCH CLEARING.

The trench clearing device is a blade that enters the trench during the excavation. It makes sure the trench is clean and emptied in preparation for utility installation.

TECHNICAL FOCUS: MATERIAL DISCHARGE.

Discharged material, which can be reused later to backfill the trench, is normally expelled to the right and left. One of the discharge outlets can be closed to allow discharge to one side only. This is useful for roadside trenching.

TECHNICAL FOCUS: WHEEL SECTORS.

The disk has removable and interchangeable sectors to quickly adjust to the trench width while using the same base disk.

a wheel saw in use on a construction site
wheel saw at a construction site
cut on a concrete road made by a wheel saw
a cut into concrete made by a wheel saw

Wheel Saws T200

For Cutting And Narrow Trenching
wheel saw attachment cutting through a dirt road

Designed for fixed-section trenching on hard and compact surfaces. Including asphalt, cement and rock. The total protection of the wheel saw at any working depth ensures maximum safety of persons and property.
Hydraulic piston motors in direct drive with milling disk allow maximum hydraulic efficiency and a high cutting force

Technical Specifications

TRENCH DEPTH8 inch
WHEEL WIDTH (4)1 – 2 inch
DEPTH ADJUSTMENT– inch
SIDE SHIFTManual inch
CLEANING DEVISEOptional inch
OPERATING WEIGHT WITH STANDARD WHEEL (1) (2)600 lbs
REQUIRED OIL FLOW10 – 18 g/min
REQUIRED OIL PRESSURE3400 – 2400 psi

(1) User is responsible for ensuring that the equipment meets the prime mover’s specifications and weight requirements.
(2) Standard wheel and trench clearing device.
(3) Pressure must be inversely proportional to the flow rate available and vice versa.
(4) Variable size options.

Wheel Saws T300

For Cutting And Narrow Trenching.
Wheel saw cutting a concrete road

Designed for fixed-section trenching on hard and compact surfaces. Including asphalt, cement and rock. The total protection of the wheel saw at any working depth ensures maximum safety of persons and property. The hydraulic piston motors in direct drive with milling disk allow maximum hydraulic efficiency and a high cutting force. Specially recommended for fiber optic trenches (mini or micro trenching). Now available with a conveyor belt and tilt adjustment.

Technical Specifications

TRENCH DEPTH12 inch
WHEEL WIDTH (4)1 – 3 inch
DEPTH ADJUSTMENT– inch
SIDE SHIFTManual inch
CLEANING DEVISEOptional inch
OPERATING WEIGHT WITH STANDARD WHEEL (1) (2)1480 lbs
REQUIRED OIL FLOW16 – 32 g/min
REQUIRED OIL PRESSURE3400 – 2400 psi

(1) User is responsible for ensuring that the equipment meets the prime mover’s specifications and weight requirements.
(2) Standard wheel and trench clearing device.
(3) Pressure must be inversely proportional to the flow rate available and vice versa.
(4) Variable size options.

blank

Video Reference For Simex T 300 Wheel Saw
