Vacuum Lifting System


SL Series

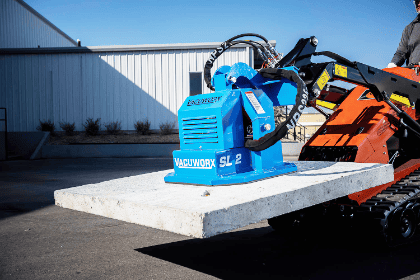

Subcompact vacuum lifting System

The ultimate attachment — lightweight and extremely versatile, the system has been updated with an improved hydraulic systems and modular pads to work with more machines and for more applications! Featuring all-aluminum construction, the patent pending design runs off the host machine’s hydraulic system and can be easily attached in minutes to lift steel plate, saw-cut concrete, granite and marble slabs, landscape pavers and more! In addition, quick-connect hydraulic hoses make switching between attachments fast and easy so you can maximize productivity on the job. Perfect for floor, sidewalk, driveway, road and landscaping projects.

4,400 lb (2 tonne) lift capacity

L 23” (584 mm) x H 25” (635 mm) x W 29” (737 mm)

Weight 125 lb (57 kg)

  • Available with manual or wireless remote control
  • Hydraulically driven vacuum pump operates using the auxiliary hydraulics from the host machine (Minimum 10 GPM required with maximum 3,000 PSI)
  • Includes quick-connect hydraulic hoses and factory pre-set flow control valve to ensure optimal performance
  • Universal mounting plates allow easy attachment to most skid steer models
  • All system components are fabricated from high-quality aluminum to maximize the overall lifting capacity of the host machine
  • Designed to lift concrete, marble, granite, metal, steel, iron, and landscape pavers
  • Also works with a variety of mini-excavators or small cranes using a clevis hook connection

SL 24,400 lb (2 tonne)125 lb (57 kg)L 23” (584 mm) x H 25” (635 mm) x W 29” (737 mm)
SL2-08322,042 lb (926 kg)26 lb (12 kg)8” x 32” (203×813 mm) inner/12” x 36” (305×914 mm) outer
SL2-12363,307 lb (1,500 kg)36 lb (16 kg)12” x 36” (305×914 mm) inner/16” x 40” (406×1016 mm) outer
SL2-24244,297 lb (2,018 kg)43 lb (20 kg)24” x 24” (610×610 mm) inner/28” x 28” (711×711 mm) outer
