The Astec hydraulic breaker design incorporates only two internal moving parts, offering reliability and long life. Designed to tackle construction, demolition, recycling, mining, and quarrying, the models range from 350 to 13,500 ft. lbs. classes. You can be assured of finding just the right capabilities. Call us today and you will be in high production breaking tomorrow.
Hydraulic Breakers

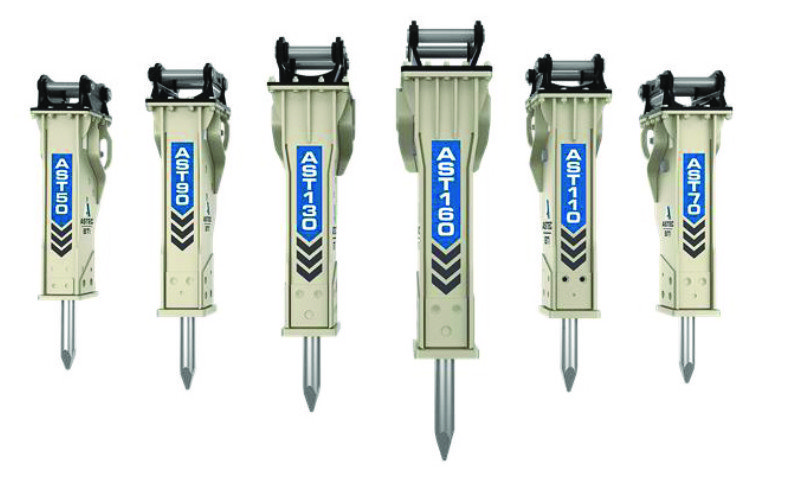

AST Series Hydraulic Breakers
High-performing Piston Design
Engineered striking‑surface geometry ensures balanced weight distribution, helping prevent one-side firing.
Vibration Damper System
Additional side-ear dampers absorb vibration and provide structural support to the main body. AST130 & AST160 only
Optimized Seal Design
Designed to maximize seal life and reduce scratching.
Heavy-Duty Tool Retainer Pins and Front Tool Bushing
Ensure longer service life for key components.
2-Speed Hydraulic Adaptive Stroke System
- Improved Productivity – adapts and adjusts speed automatically to changing material hardness. Tests have shown up to 15% increase in production rate over operation in single speed
- Higher Durability – reduces and wear and damage by only applying the power level required
- Increased Power – provide my more efficient hydraulic circuit
- Operator Convenience – eliminates the need to manually adjust the speed control
Signal Telemetry
- Monitor hydraulic breaker data and get notifications via Smart Phone, PC, or tablet.
- Track Location
- Monitor Operating Hours
- Be notified of Maintenance & Service Intervals
Automatic Greasing System
- Breaker mounted, hydraulically driven grease pump, connected to dedicated pressure and return ports on the hydraulic breaker body
- 400 g (14 oz) Replaceable Grease Cartridge that can be replaced or can be refilled through a grease fitting
- Grease output adjusted for each model of AST Hydraulic Breaker, the unit is equipped with an adjustment screw
| Model | Specs | AST50 | AST70 | AST90 | AST110 | AST130 | AST160 |
|---|---|---|---|---|---|---|---|
| Carrier Weight Class | lb | 39,700-66,140 | 55,115-83,775 | 61,700-95,595 | 77,160-121,255 | 105,820-165,350 | 121,300-220,500 |
| tonne | 18-30 | 25-38 | 28-42 | 35-55 | 48-75 | 55-100 | |
| Working Weight | lb | 3925 | 6170 | 6855 | 8310 | 9920 | 13755 |
| kg | 1780 | 2799 | 3110 | 3770 | 4500 | 6240 | |
| Tool Diameter | in | 5.5 | 5.9 | 6.3 | 6.9 | 7.1 | 7.9 |
| mm | 140 | 150 | 160 | 175 | 180 | 200 | |
| Exposed Tool Length | in | 27.8 | 29.5 | 30.4 | 31.7 | 32.2 | 26.6 |
| mm | 706 | 750 | 772 | 805 | 818 | 930 | |
| Oil Flow | gpm | 34-45 | 45-63 | 51-69 | 58-74 | 66-87 | 79-106 |
| lpm | 130-170 | 170-240 | 190-260 | 220-280 | 250-330 | 300-400 | |
| Operating Pressure | psi | 1885-2610 | 2175-2610 | 2175-2610 | 2175-2610 | 2175-2610 | 2175-2610 |
| bar | 130-180 | 150-180 | 150-180 | 150-180 | 150-180 | 150-180 | |
| Blow Rate | bpm | 250-650 | 270-650 | 260-650 | 250-600 | 220-550 | 200-480 |
| Sound Level | dB | 116 | 121 | 121 | 124 | 130 | 135 |
| Stroke Control | — | 2-Speed Adaptive | 2-Speed Adaptive | 2-Speed Adaptive | 2-Speed Adaptive | 2-Speed Adaptive | 2-Speed Adaptive |
CX Series
Easy to Service
With fewer parts integrated into the design, servicing the hydraulic hammer is both easy and less expensive
Low Operating Cost
High flow rates and low operating pressures minimize heat generation and hydraulic shock loading for smooth operation and maximum service life for both the carrier and hydraulic rock breaker
Operate in Varying Rock Conditions
Anti-blank fire on/off selector allows you to alternate modes when working in varying conditions (CX8 only)
Reduce Noise Levels
Boxed housing keeps the noise levels down, essential in high-density population areas
Optimize Production
Breaker-mounted manual high/low stroke selector valve optimizes power and speed, giving you options
Configurations
Configured for today’s skid steers, mini excavators, and backhoes for efficient use of the carrier’s hydraulic circuit
 BX Series
Easy to Service
With fewer parts integrated into the design, servicing the hydraulic hammer is both easy and less expensive
Low Operating Cost
High flow rates and low operating pressures minimize heat generation and hydraulic shock loading for smooth operation and maximum service life for both the carrier and breaker
Operate in Varying Conditions
Anti-blank fire on/off selector (BX10 – BX30) allows you to alternate modes when working in varying rock conditions
Extreme Duty and Wear Bar Kit Option
The extreme duty and wear bar kit offers additional protection against the wear and tear of your hydraulic rock breaker with a factory application of cast abrasion strips and a wear-resistant plate with rock claws
Reduce Noise Levels
Boxed housing keeps the noise levels down, essential in high-density population areas
Optimize Production
Hydraulic rock breaker-mounted manual stroke selector valve optimizes power and speed, giving you options for different applications
Auto-grease Options
The auto-grease system keeps your tool lubricated without the hassle of stopping your production cycle flow while delivering just the right amount of grease when it’s needed most. The system installs directly on the breaker
BXR Series
Extreme Impact Energy
The extra-long stroke pressure-balanced piston, oil regeneration system, and button-nose piston design maximize the blow energy needed to break hard rock
Continuous Duty in Harsh Conditions
High-strength alloy plate steel with abrasion-resistant plate housing and heat-treated alloy pistons allows the rock breaker to withstand the harshest conditions
High Operating Efficiency
The oil regeneration system increases BPMs (Beats Per Minute) without decreasing energy in hard material applications
Protection for Internal Components
Anti-blank fire on/off selector keeps the rock breaker from firing until tool force is applied, protecting your internal components from unnecessary damage
Optimize Production
Long/short stroke selector (manual or remote) optimizes power and speed, giving you options for different applications
Reduce Noise Levels
Boxed housing keeps the noise levels down, essential in high-density population areas
| Specification | BXR50C | BXR65C | BXR85C | BXR100C | BXR120C | BXR160C | BXR185C |
|---|---|---|---|---|---|---|---|
| Operating Pressure | 2,700 psi / 186 bar | 2,700 psi / 186 bar | 2,700 psi / 186 bar | 2,700 psi / 186 bar | 2,700 psi / 186 bar | 2,700 psi / 186 bar | 2,700 psi / 186 bar |
| Overall Length | 103 in / 2,622 mm | 112 in / 2,863 mm | 128 in / 3,241 mm | 134 in / 3,400 mm | 138 in / 3,500 mm | 155 in / 3,943 mm | 181 in / 4,590 mm |
| Exposed Tool Length | 25 in / 635 mm | 26.2 in / 665 mm | 29.3 in / 745 mm | 30.3 in / 770 mm | 31.9 in / 810 mm | 36.6 in / 930 mm | 36 in / 913 mm |
| Operating Weight | 4,200 lb / 1,910 kg | 4,860 lb / 2,200 kg | 6,500 lb / 2,950 kg | 7,800 lb / 3,540 kg | 9,200 lb / 4,170 kg | 12,100 lb / 5,490 kg | 7,100 kg / 15,660 lb |
| Tool Diameter | 5.5 in / 140 mm | 6 in / 150 mm | 6.3 in / 160 mm | 6.7 in / 170 mm | 7.1 in / 180 mm | 7.9 in / 200 mm | 8.7 in / 221 mm |
Specification BX10 BX15 BX20 BX30 BX40 Operating Pressure 2,000 psi / 140 bar 2,000 psi / 140 bar 2,300 psi / 160 bar 2,450 psi / 170 bar 2,450 psi / 170 bar Overall Length 71 in / 1,800 mm 78 in / 1,980 mm 88 in / 2,225 mm 97 in / 2,455 mm 109 in / 2,760 mm Exposed Tool Length 17.5 in / 445 mm 18.5 in / 465 mm 21.3 in / 438 mm 26.5 in / 668 mm 26.5 in / 668 mm Operating Weight 948 lb / 430 kg 1,355 lb / 615 kg 2,050 lb / 930 kg 2,668 lb / 1,210 kg 3,830 lb / 1,740 kg Tool Diameter 3.1 in / 78 mm 3.3 in / 85 mm 4.1 in / 105 mm 4.7 in / 120 mm 5.3 in / 135 mm
| Specification | CX4 | CX6 | CX8 |
|---|---|---|---|
| Operating Pressure | 1,710 psi / 120 bar | 2,000 psi / 140 bar | 2,000 psi / 140 bar |
| Overall Length | 53 in / 1,334 mm | 55 in / 1,408 mm | 64 in / 1,635 mm |
| Exposed Tool Length | 12.6 in / 321 mm | 13.5 in / 344 mm | 19.7 in / 500 mm |
| Operating Weight | 296 lb / 180 kg | 493 lb / 244 kg | 734 lb / 333 kg |
| Tool Diameter | 2.1 in / 53 mm | 2.4 in / 62 mm | 2.8 in / 70 mm |
